800 Watt Pure Sine Wave Inverter

  • This series of pure sine wave inverters is a multifunctional convertible power supply adopting up to date converting technology. It adopts the most advanced control technology of SPWM, and it has a lot of characteristics such as: precise control, isolation of input and output, security, efficiency, good reliability. They can convert 12V/24V/36V/48V DC power from batteries to 220V pure sine wave AC power, which specially can supply electricity power to families, marketplace and so on.

  • QQ Chat
Model:ZB-800-S

Output Waveform:Pure sine wave
Continuous Power:800W
Peak Power:1600W
Input Voltage:12V/24V/48V DC
Output Voltage:100V/110V/120V/220V/230V/240V AC
Frequency:50Hz/60Hz
Efficiency:>88%
No Load Current Draw:<0.6A
THD:<4%
Dimension:210*150*70MM
Net Weight:1.4±0.2KGS
Carton Dimension:420*340*460MM
Gross weight:7±1KG /6PCS

New Function:
Soft Start
USB port

CONTACT US

Tel:
+86-574-62792283
Fax:
+86-574-22229987
Email:
ben@zonbo.net
Add:
NO.73, FENGMING ROAD, YUYAO CITY, ZHEJIANG PROVINCE,CHINA

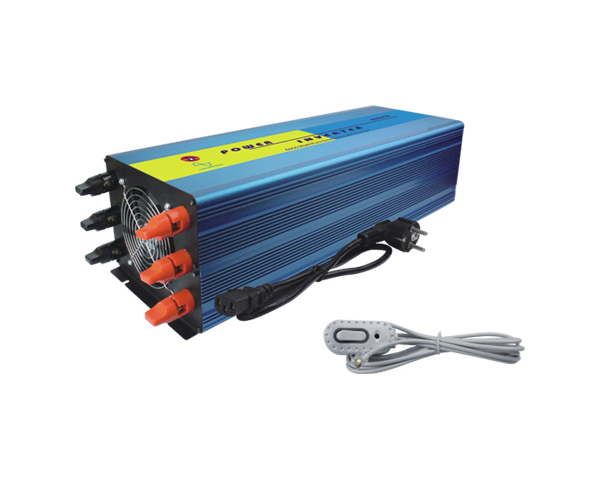

Modified Sine Wave with Charger Series
